LMP/LMJ Spiral vibration grinding machine
(Click to enlarge the following pictures)

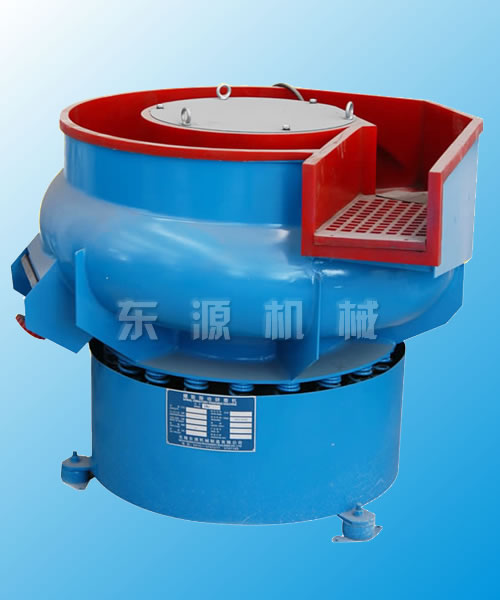

LMJ100-300-2
Spiral vibration
grinding machine

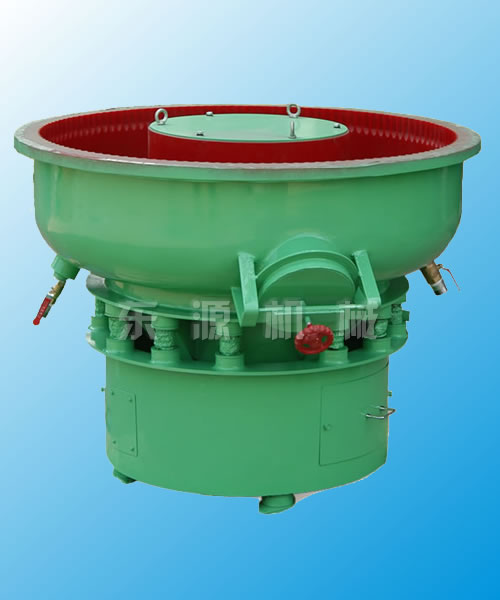

LMJ300
Non-standard spiral
vibration grinding machine

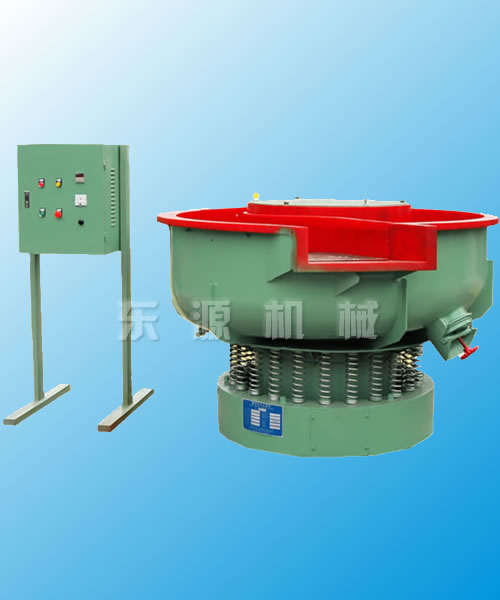

LMJ600(PU)
Spiral vibration
grinding machine

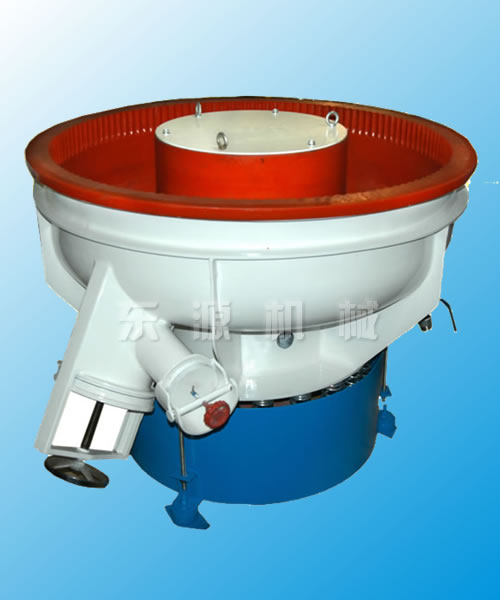

LMP50-80
Spiral vibration
grinding machine
LMP50-300
Spiral vibration
grinding machine
LMP50
Grinding machine
　

LMP100-300-2
Spiral vibration
grinding machine
LMP300
(Non-standard) Spiral
vibration grinding machine
LMP400-900
Spiral vibration
grinding machine

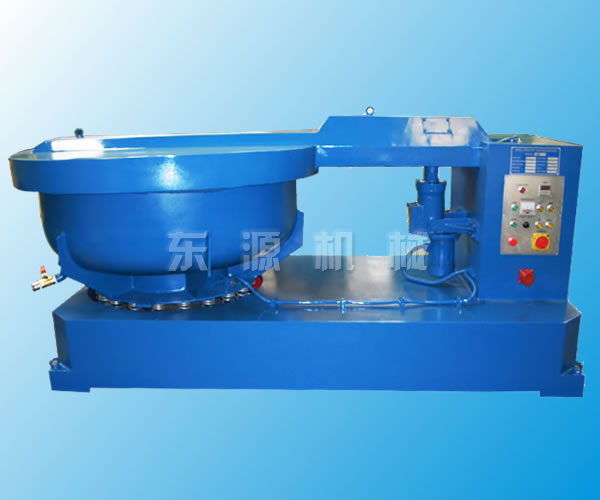

(Germany model) Grinding machine         Overall sound proof Grinding machine

Main Technical Parameter

Model, Specification LMJ
80		 LMJ
100		 LMJ
150		 LMJ
200		 LMJ
250		 LMJ
300		 LMJ
400		 LMJ
600		 LMJ
900		 LMJ
100a		 LMJ
250a		 LMJ
600a		 LMJ
600z
Container
Capacity L		 80 100 150 200 250 300 400 600 900 100 250 600 600
Total Height mm 930 1060 1180 1180 1170 1270 1376 1500 1544 1100 1300 1530 1500
Sepearting Mouth Height 815 810 900 900 930 1100 1200 1100 1214 820 1144 1080 1100
Overall Length 980 1140 1280 1250 1500 1450 1480 1860 2473 1560 2080 2810 1860
Base Installing Dimension φ610 φ610 φ770 φ770 φ1030 φ1030 φ1380 φ1200 φ1630 1360
×755		 1670
×900		 2370
×1300		 1200
Total Weight 380 430 520 520 720 720 980 1100 1500 580 1125 1500 1250
Vibration
Motor		 Power 1.1 2.2 2.2 2.2 3.7 5 5 5.5 11 1.5 3.7 5.5 11
Turning Speed 1450 1455 1450 1450 1450 1440 1440 1450 1450 1455 1450 1450 1450
Voltage/
Frequency		 380/50

　
　

　
