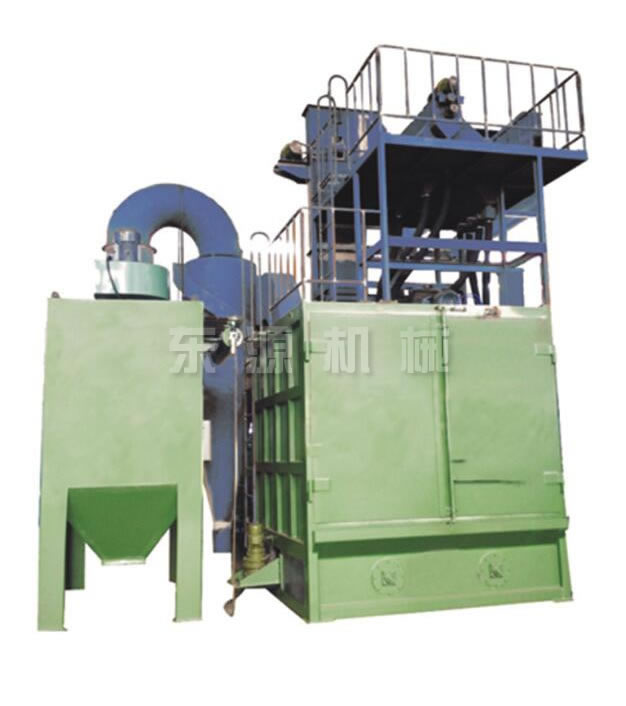

Q35 Rotary table shot
blasting machine
This machine is suitable for cleaning
surface of collision-sensitive parts of
medium and small casting, forged piece,
weldment and flat thin wall but also
especially suitable for surface peening of
gear, shaft, and spring as well as pull rod
sintering piece.
Main Technical Parameter
| Model, Specification |
Q3509 |
Q3212 |
Q3515 |

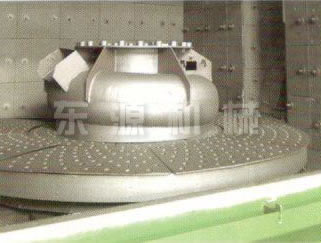

| Turntable Diameter |
∮900mm |
∮1200mm |
∮1500mm |
| Turntable Speed |
3rpm |
1rpm |
0.7rpm |
| Indoor Size |
∮1000×530mm |
∮1250×450mm |
∮1500×550mm |
| Turntable Max. Deadweight |
250kg |
400kg |
450kg |
Shot
Blasting
Machine |
Rotary Speed |
2900rpm |
2900rpm |
2900rpm |
| Turning Diameter |
∮360mm |
∮300mm |
∮320mm |
| Shot Blasting Quantity |
80kg |
2×40kg |
2×120kg |
| Power |
7．5kw |
2×4kw |
2×7.5kw |
| Air Capacity |
1000m3/h |
2200m3/h |
3000m3/h |
| Total Power |
10.45kw |
13.2kw |
20.75kw |
| Overall Size |
1820×
1640×
3260mm |
2400×
2500×
3300mm |
2400×
2500×
3800mm |
| Total Weight |
2850kg |
2850kg |
3280kg |
| Dust Removal Type |
Bag Dust Collection |
Bag Dust Collection |
Bag Dust Collection |
| Voltage/ Frequency |
380v/50hz |
380v/50hz |
380v/50hz |
|
