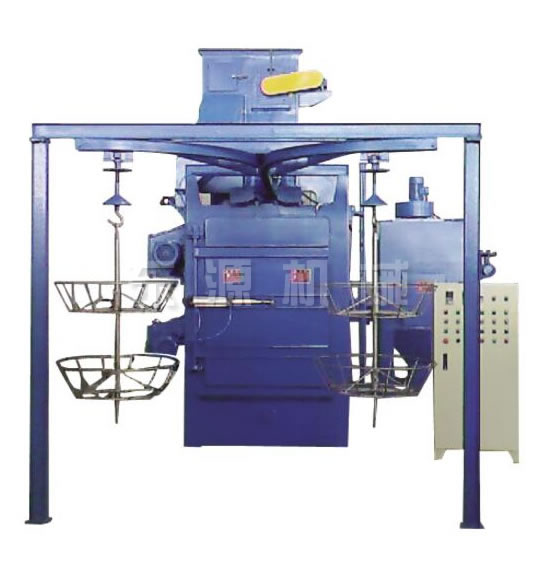

YXD Hanger type shot blasting machine
(Click to enlarge the following pictures)

The main characteristics are:
　　1、Home-made with reference of latest technique of shot blasting machine of German companies.
　　2、The impeller head adopts coupled-type motor to drive; the motor is frequency converting type which can realize frequency control.
　　3、The steel shot flow control valve can be microadjusted and start and close pneumatically.
　　4、Adopt the most advanced core barrel pulse blow back type dust removal system in the world.
　　5、The electricity system is controlled with PLC.
　　6、No-pits.

Main Technical Parameter

	Name	Type YXD-10/12	Type YXD-12/16	Type YXD-12/20
1	Quantity	2	2	3
2	Motor Power(kw)	2×7.5	2×11	3×11
3	Workpiece Hanging Diameter(mm)	1000	1200	1200
4	Workpiece Hanging Height(mm)	1200	1600	2000
5	Lifting Hook(kg)	300	500	800
6	Shot Blasting Quantity(kg/min)	2×120	2×140	3×140
7	Steel Sheet Piling Packed Weight(kg)	350	450	600
8	Ventilation Volume(m3/h)	2500	3600	4300
9	Compressed Air Consumption(m3/h)	8	9	12
	Core Tube Air Collection Consumption	6	6	9
	the Consumption of Pill Valve, Shot Blasting Room	2	3	3
10	Compressed Air Pressure(bar)	5-7	5-7	5-7
11	Compressed Air (Dry, Cleaning)
12	Total Power(kw)	22	29	42
