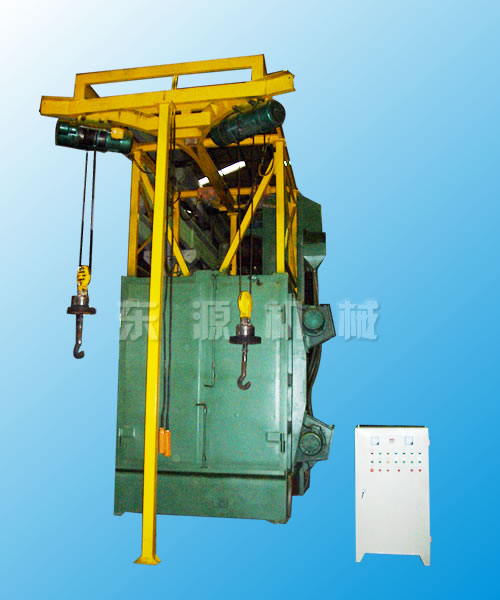

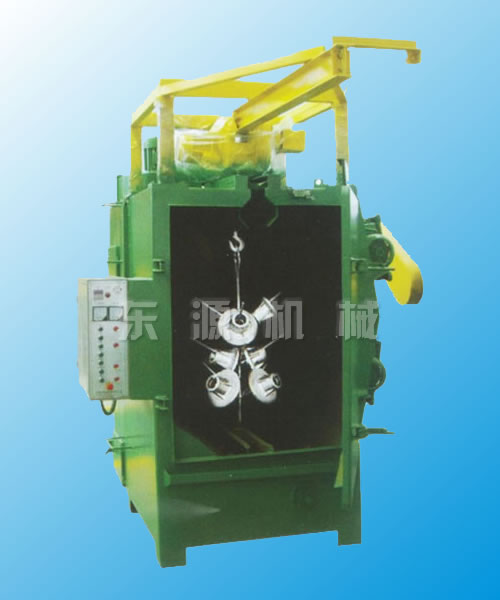

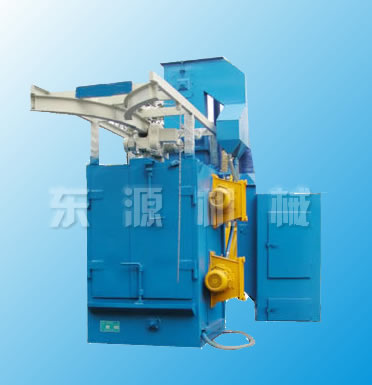

Q37 Hook type shot
blasting machine
(Click to enlarge the following pictures)
This model is suitable for cleaning or
reinforcing various medium and large batch
forged piece, casting and sheet metal parts
but also more suitable for frosting surface
after rust removal and increasing adhesive
force of spraying. There are models of Q375
single-hook shot blasting machine, Q376
double-hook shot blasting machine and Q378
double-hook shot blasting machine etc.
Characteristics:
1、 This machine adopts no-pit structure
which is easy to be mounted and thus reduce
investment cost.
2、 Compact structure, high efficiency, good
cleaning quality, reliable and safe
operation, steady running.
3、 The cleaning chamber is wear-resisting
and impact resistant with good intensity by
adopting High Chromium Manganese plate.
4、 Double-hook structure, which can work
independently, neither influencing the
other, thus improve production efficiency.
The hook adopts planet principle with
simultaneous rotation and revolution. The
processed work piece doesn’t have male and
female face.
5、 Two-stage dust removal (cyclone dust
removal and bag filter), great air volume,
the dust is completely filtered, and the air
discharge is in compliance with environment
protection standard.
6、 Precise assembly, high-quality bearing,
and low noise of motor running.
Main Technical Parameter
| Model |
Cleaning Room Size |
Max. Size
Diameter x Height |
Outside
Size |
Power of Shot Blasting Machine |
Improving Power |
Spiral Conveyor
Power |
Lifting Hook
Power |
Dust Removal
Power |
Total
Power
KW |
Weight
KG |
Q379
double |
1950
x1900
x2200 |
800
x1600 |
6100
x2800
x4800 |
2x11 |
1.1 |
1.1 |
2x0.75 |
5 |
30.7 |
6300 |
Q379
Single |
1950
x1900
x2200 |
800
x1600 |
6100
x2800
x4800 |
2x11 |
1.1 |
1.1 |
0.75 |
5 |
29.95 |
6100 |
Q378
double |
1750
x1700
x2000 |
700
x1400 |
5900
x2600
x4800 |
2x7.5 |
1.1 |
1.1 |
2x0.75 |
3 |
21.7 |
5800 |
Q378
Single |
1750
x1700
x2000 |
700
x1400 |
5900
x2600
x4800 |
2x7.5 |
1.1 |
1.1 |
0.75 |
3 |
20.95 |
5400 |
Q376
double |
1550
x1500
x2000 |
600
x1400 |
5700
x2500
x4800 |
2x7.5 |
1.1 |
1.1 |
2x0.75 |
3 |
21.7 |
5100 |
Q376
Single |
1550
x1500
x2000 |
600
x1400 |
5700
x2500
x4800 |
2x7.5 |
1.1 |
1.1 |
0.75 |
3 |
20.95 |
4800 |
Q375
double |
1450
x1400
x2000 |
550
x1400 |
5600
x2300
x4800 |
2x7.5 |
1.1 |
1.1 |
2x0.75 |
3 |
21.7 |
4500 |
Q375
Single |
1450
x1500
x2000 |
550
x1400 |
5700
x2500
x4800 |
2x7.5 |
1.1 |
1.1 |
0.75 |
3 |
20.95 |
4200 |
Q372
Single |
1200
x1200
x1450 |
300
x700 |
3560
x2000
x3400 |
2x4 |
1.1 |
1.1 |
0.`75 |
3 |
12.85 |
2850 |
|
